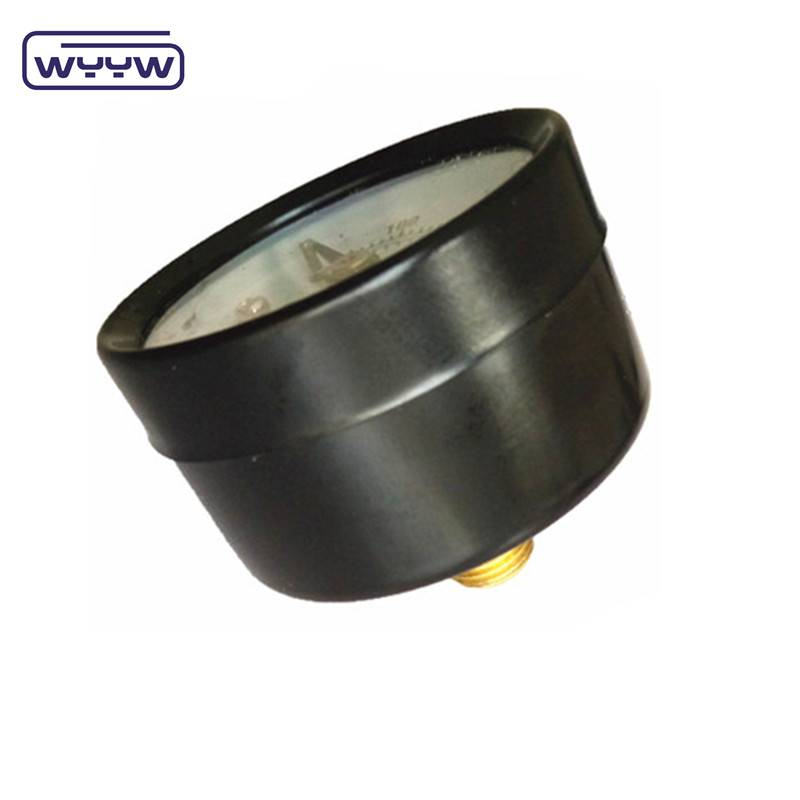

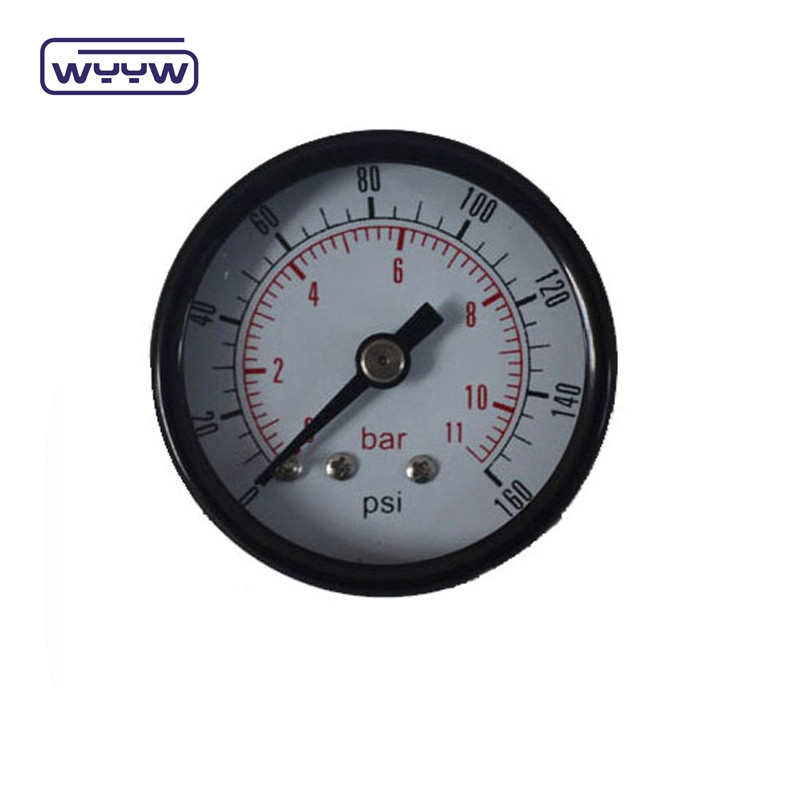

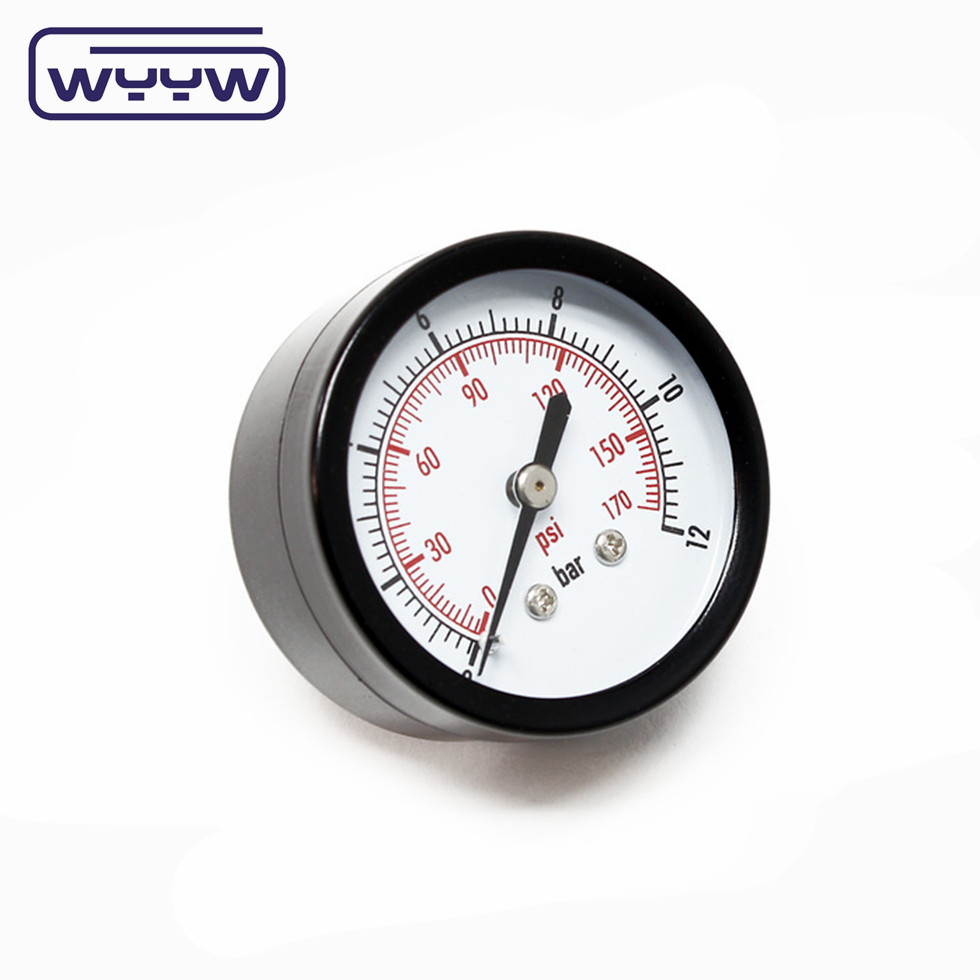

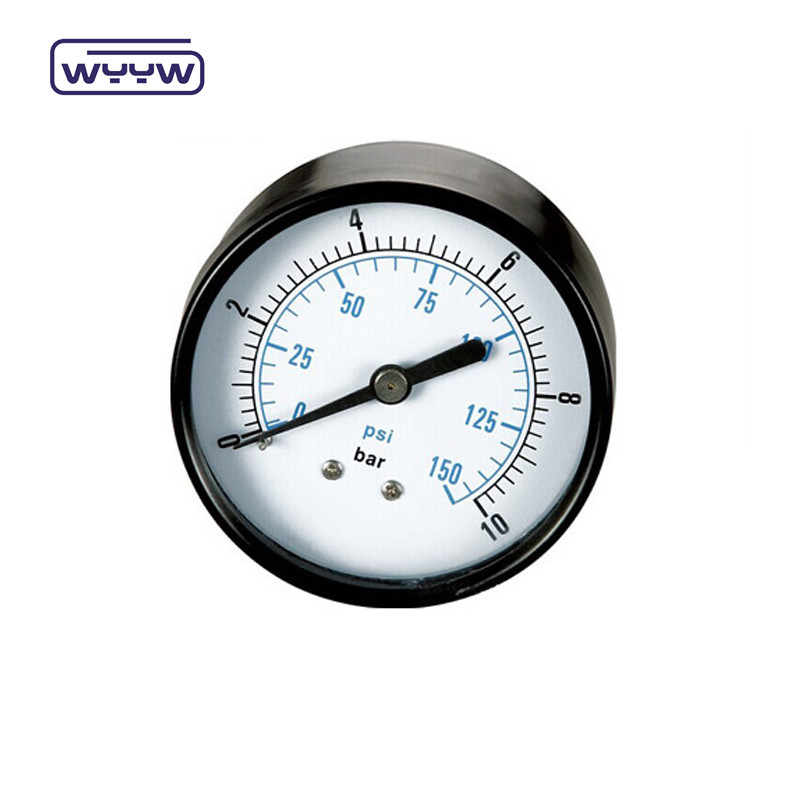

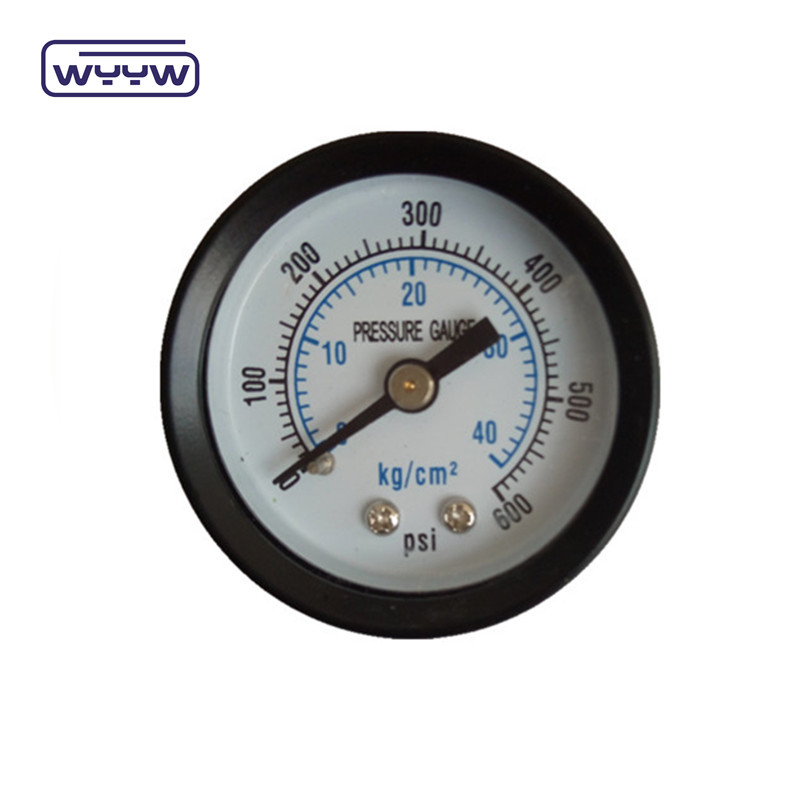

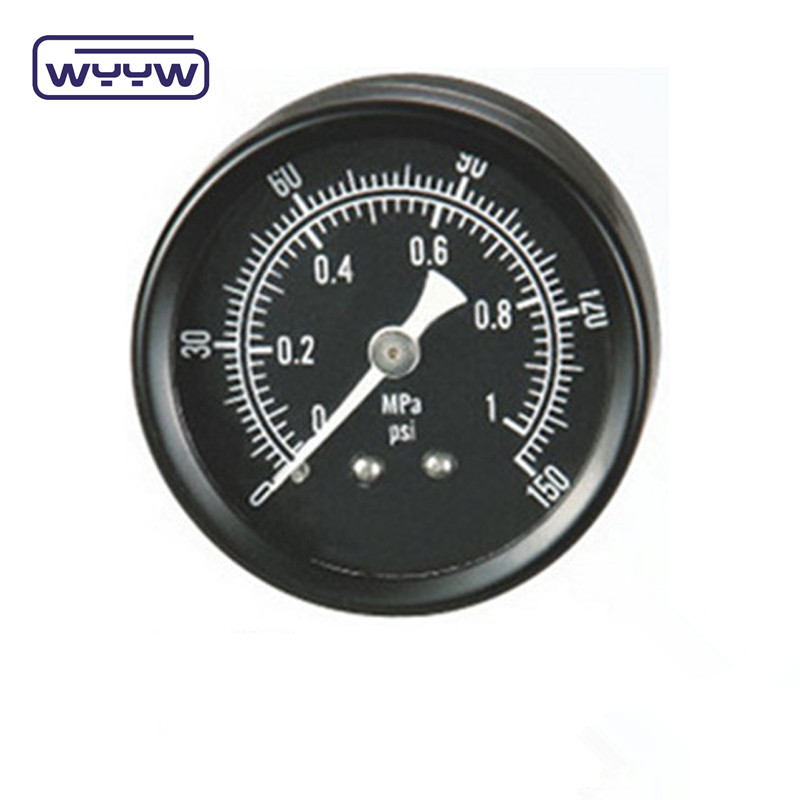

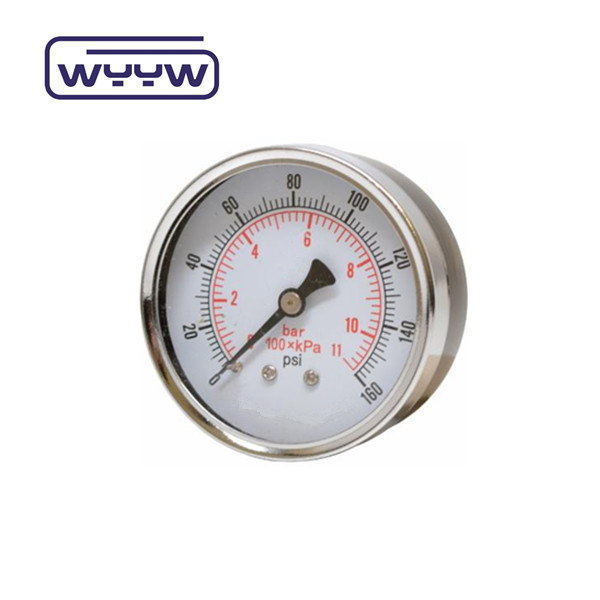

63mm Back mounting Pressure gauge



 General Service Pressure Gauge
Main Technique
Data


一般压力表Dials Size1.5"(40mm), 2"(50mm), 2.5“(63mm), 4”(100mm) and 6“ (150mm)
Case Black steel, ABS or chrome plated
Pressure range0 -250Mpa,other scale units bar, psi, kg/cm2 etc.optional
RingNon,  black steel or chrome plated
MovementBrass
SocketBrass
Bourdon tubePhosphor Bronze
Dial plate and pointerAluminum
WindowGlass or Plastic
Connection sizes1/8 for 1.5" case; 1/4 for 2",2.5" case, 3/8"&1/2" for 4",6"case
Connection threadsMetric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)

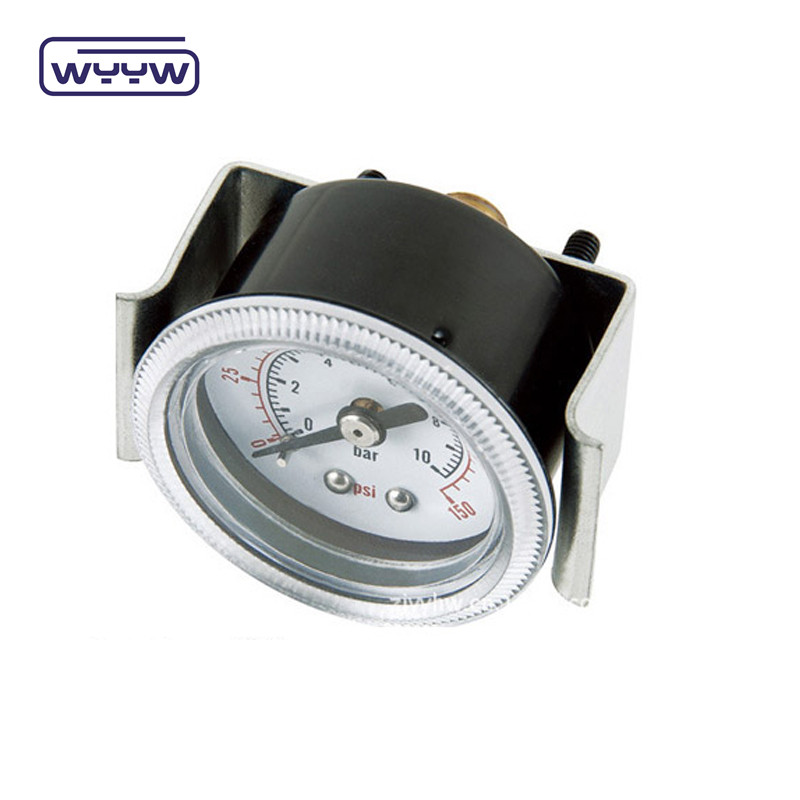

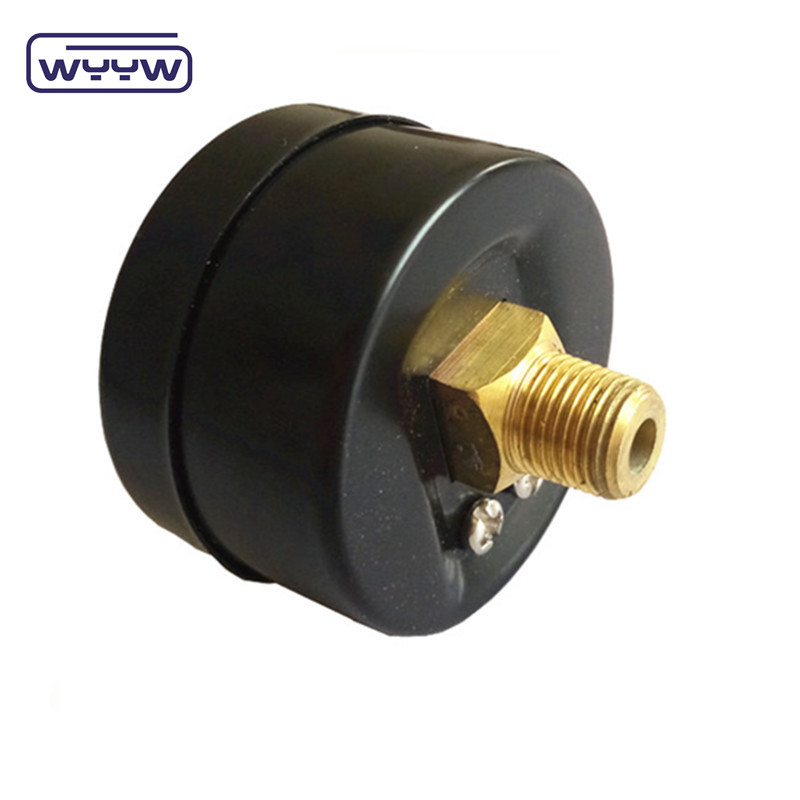

MountingBottom,back and panel
Accuracy1.5"(40mm), 2"(50mm), 2.5(63mm)-2.5%
 4(100mm) and 6 (150mm)-1.6%
Pressure limitationSteady: 3/4x full scale value
Fluctuation:2/3x full sacle value
Short time:full scale value
